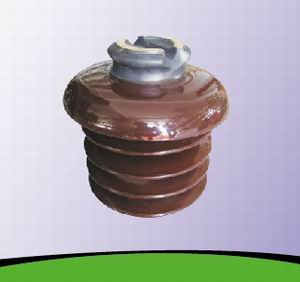

DIN/IEC Pin Type Porcelain Insulator VHD-35-G

Availability:

Quantity:



Inquiry Add to Inquiry

Model:
VHD-35-G
Brand:
COLMATE
Code:
8546209090

Product Description

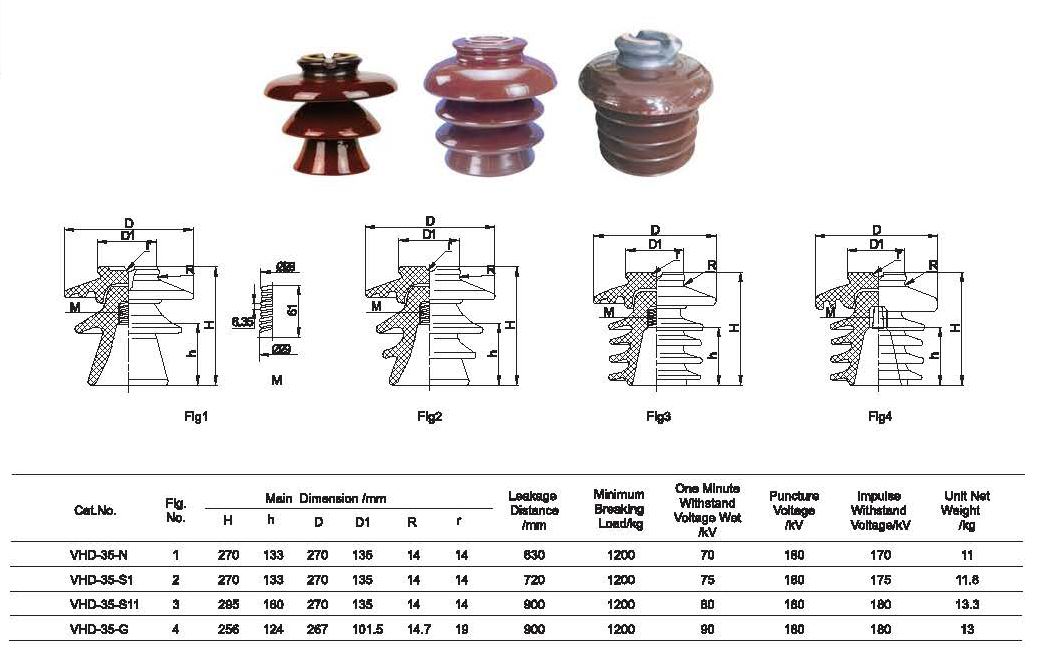

*Key dimension: Φ267X256mm

*Semi-conducting glaze on top optional

*Min cantilever strength: 13kN

*Min creepage distance of 900mm

*Brown/grey glaze optional

*DIN/IEC compliant
