15kV Polymer Housed Surge Arrester CMR5W-15

Availability:

Quantity:



Inquiry Add to Inquiry

Model:
CMR5W-15
Brand:
COLMATE
Code:
8535400000

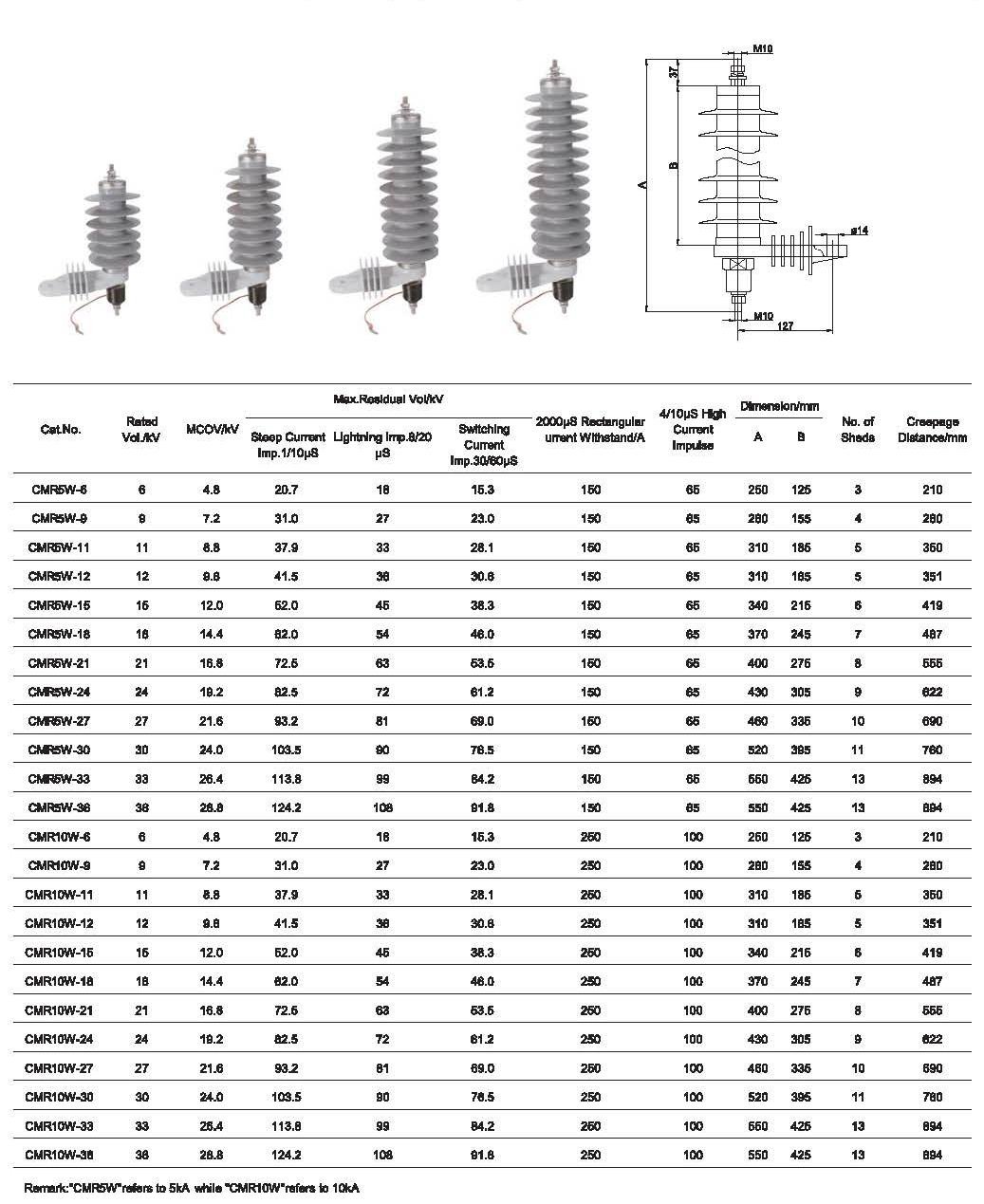

Product Description

*Rated voltage: 15kV

*Rated discharge current: 5kA/10kA

*Housing: Silicon

*Min creepage distance: 419mm

*Mounting bracket & dieconnector included

*In comply with IEC/NEMA standard

D03
